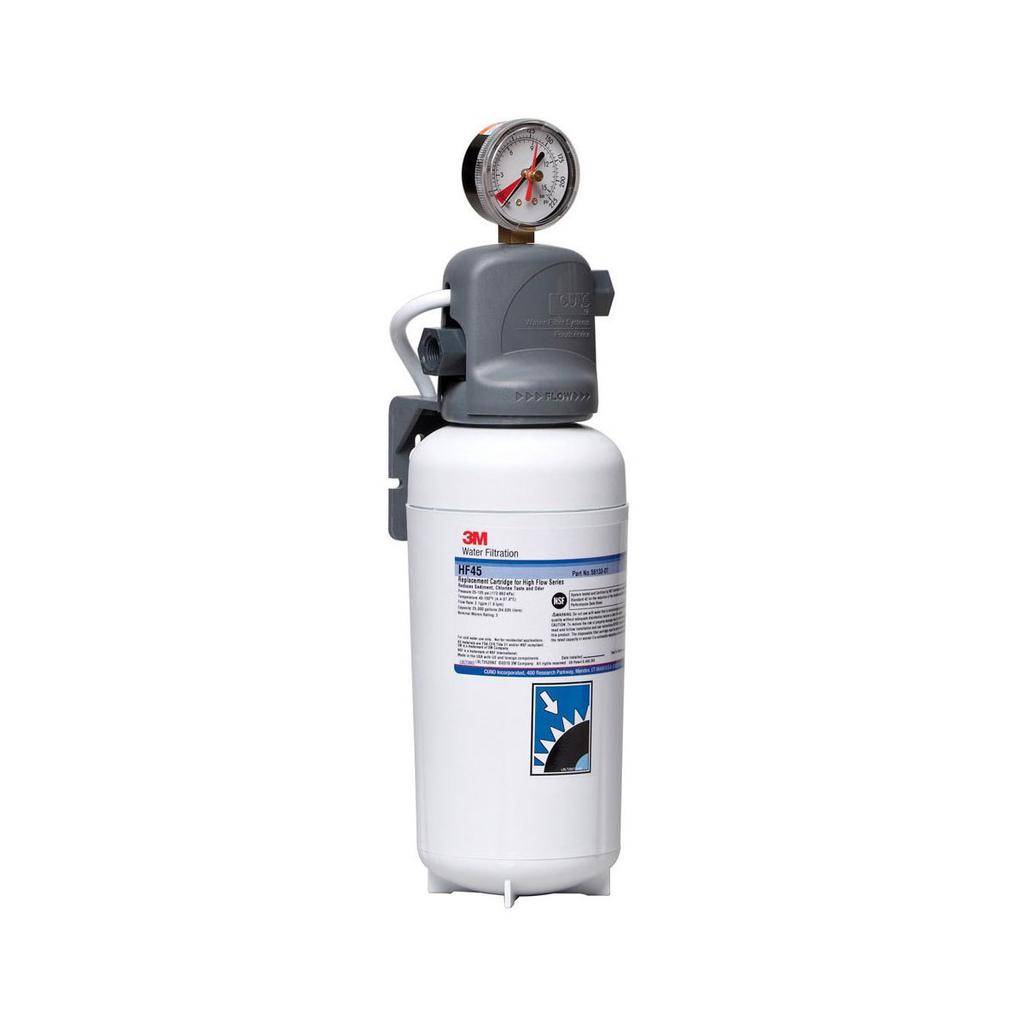

3M BEV145 Cold Beverage Filtration System

3M BEV145 Cold Beverage Filtration System

3M Water Filtration Products, High Flow Series models BEV140 and BEV145 single cartridge water filtration systems help to improve the taste, appearance and consistency of your beverages at flow rates up to 2.1 gpm (7.9 lpm).

BEV140 combines cyst and bacteria1 reduction with particulate and chlorine taste and odor reduction for up to 25,000 gallons (94,635 liters).

BEV145 combines particulate reduction with chlorine taste and odor reduction for up to 25,000 gallons (94,635 liters).

3M Water Filtration Products BEV145 Cold Beverage Filtration System reduces sentiment, chlorine, taste and odor. Revolutionary Integrated Membrane Pre-Activated Carbon Technology (IMPACT) dual zone media cartridge construction combines a membrane in series with premium activated carbon to provide superior throughput and cartridge life. For Single high flow Carbonator Dispensers under high turbidity water conditions. Valve-in-head design simultaneously shuts off and vents water, allowing for simple and virtually trouble free cartridge change outs without the need to shut off the incoming feed water. Reduction of sediment and abrasive hard particles helps prevent equipment wear and helps extend the life of pumps, valves, o-rings and seals.

Sanitary Quick Change (SQC) encapsulated cartridge design reduces media contamination during change-outs.
Reduces unwanted taste/odors and chlorine corrosion of metallic components.
FDA CRF-21 compliant materials
Certified to NSF Standard 42
Replacement Cartridge: HF45

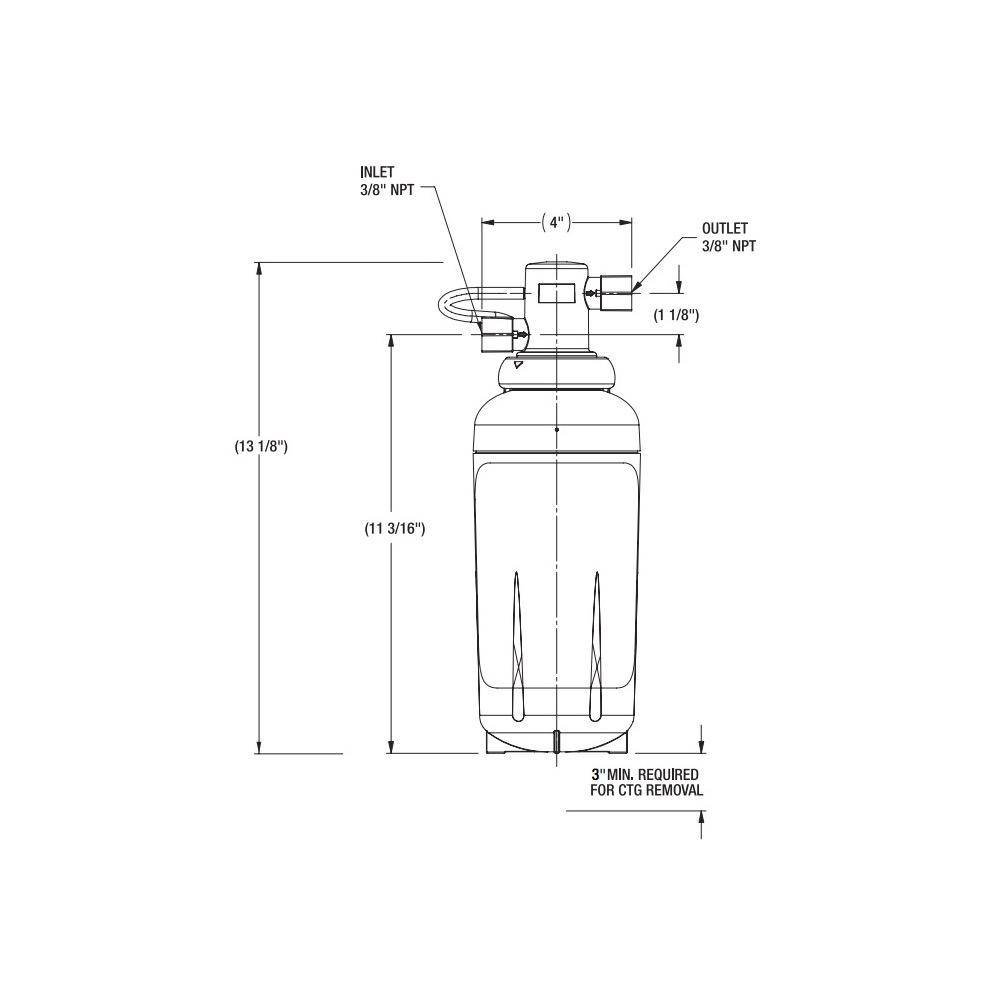

Specifications:
Inlet/Outlet: 3/8" NPT
Height: 11-3/16"
Diameter: 4"
Flow Rate: 2.1 gpm
Micron Rating: 3.0 micron (nominal)
Media Type: Carbon Block
Max Water Temp: 100 F
Max Water Pressure: 125 psi
Capacity: 25,000 gallons
Change Frequency: 6-12 months

System includes a head assembly with integral mounting bracket, pressure gauge and a single cartridge filter.
Inlet and outlet plumbing connections are 3/8" FNPT.
System incorporates an internal automatic 1/4 turn shut-off valve.
Filter cartridges are O-ring seal type.
System maximum operating pressure of 125 psi (862 kPa) and operating temperature of 100 F (37.8 C).
Recommended service flow rate is up to 2.1 gpm (7.9 lpm).
Filter cartridges incorporate a bacteriostatic carbon block filtration medium (HF40 replacement cartridge).
NSF Standard 42.
FDA CFR-21 compliant materials.
Cartridges are sanitary in design, requiring no contact with the filter media during cartridge change-out.
Filter cartridges require no pre-activation.
NSF Performance Data Sheet (PDS) is included.
