3M DP2XX High Flow Series Dual Port Twin Manifold Assembly

    613.34 613.34 613.34 CAD

    613.34

    This combination does not exist.

    Add to Cart Buy Now

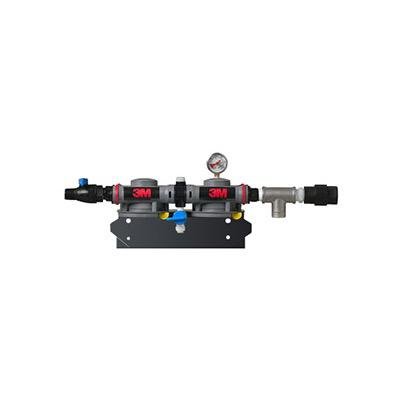

    3M DP2XX High Flow Series Dual Port Twin Manifold Assembly

    Product Details
    Dual head assembly
    Dual outlet design
    3/4" MNPT inlet and outlet water connections
    Designed for use with 3M High Flow Series water filtration cartridges

    Product Number 6228503
    3M ID 7000001832

    Our 3M High Flow Series Dual Port Twin Manifold Assembly (DP2XX) features a dual outlet design and 3/4" MNPT inlet and outlet water connections. One of the two outlets includes a head for installing HF8-S replacement filter for applications requiring scale inhibition. The 3M filter manifold assemblies provide a vehicle for appropriate water quality to equipment requiring different water characteristics for various applications. These products are innovatively designed for ease of installation and maintenance. Most manifold models include a pressure gauge to monitor differential water pressure.

    Creative Filtration Technology
    3M Water Filtration Products systems and cartridges offer a wide range of solutions designed to address many types of water quality concerns. Third-party certifications, such as NSF and WQA, are an advantage provided on many 3M Water Filtration Products. 3M Purification is a known leader in filtration technology recognized for innovation, trust, and quality around the world.

    Recipe Quality Water
    Having cleaner and clearer water for your business is both a pleasure and a reassurance that you're giving your customers recipe quality water. With a water filtration system from 3M Purification, you can provide filtered water that may help protect your equipment and your profits. From commercial point-of-entry to dedicated point-of-use water filtration systems, look to 3M Purification to help you find the right solution.

    Specifications
    Applications
    Coffee and Hot Tea, Cold Beverage, Combination Systems, Ice
    Depth
    5.3 Inch
    Depth (metric)
    13.5 Centimeter
    Filter Type
    SQC Filtration System
    Flow Rate
    Up to 10 gpm
    Height
    8.4 Inch
    Height (Metric)
    21.4 Centimeter
    Industries
    Commercial
    Inlet Outlet Size
    3/4" MNPT
    Length
    25.1 Inch
    Length (Metric)
    63.8 Centimeter
    Maximum Operating Temperature (Celsius)
    37.8 Degree Celsius
    Maximum Operating Temperature (Fahrenheit)
    100F
    Pressure Range
    125 psi
    Pressure Range (metric)
    862 kPa
