    ACO 37342 Wave Stainless Steel Grate 27.55

    ACO ShowerDrain channel and Wave grate system shall be 1mm thick (20 gage) stainless steel grade 304 manufactured by ACO, Inc. USA.
    The surface finish shall be Electropolished* OR Oil Rubbed Bronze*.

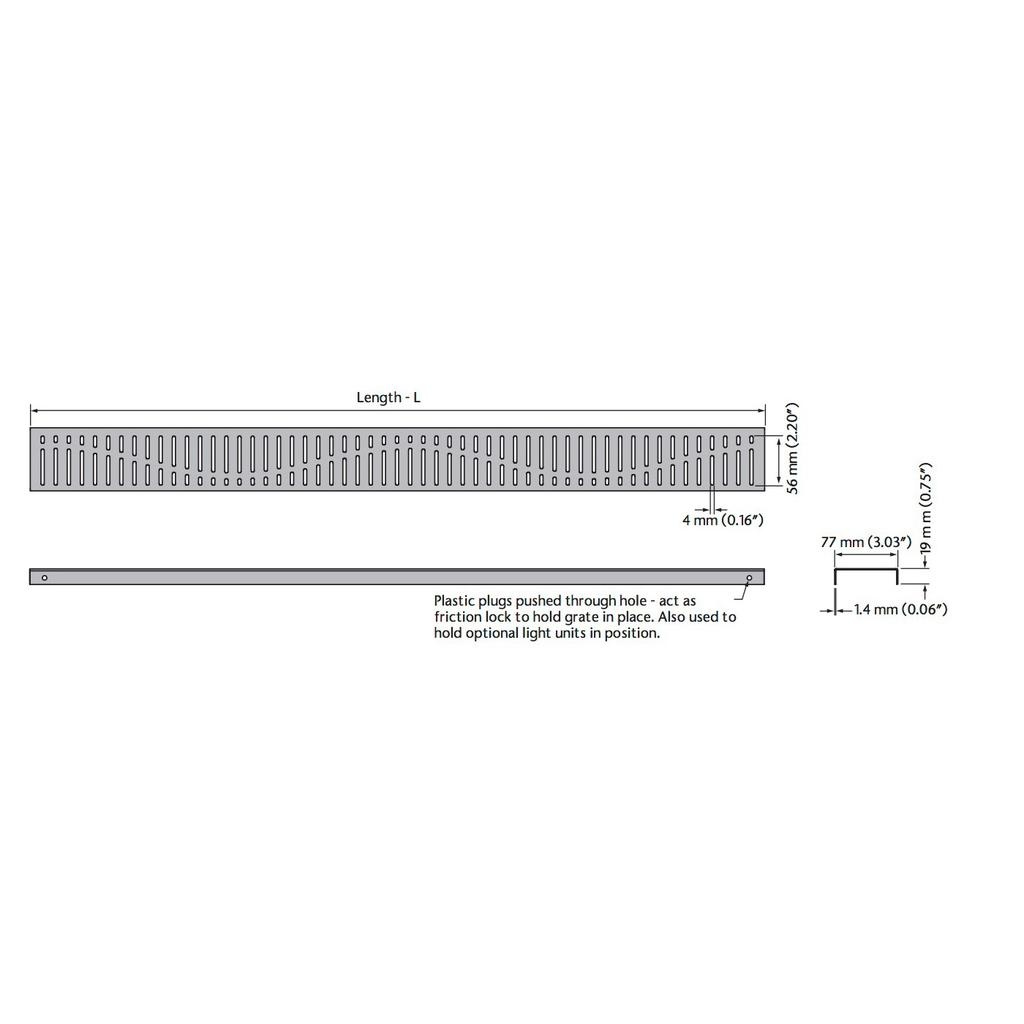

    Grate shall be 3.03" (77mm) wide, with length as specified on Architects plans / Architects specification.
    Shower channel shall be Plain Edge* OR Flanged Edge*. (See separate Spec Info Sheet for details)
    ACO recommends checking local plumbing codes prior to installation.
    The system shall be installed in accordance with the manufacturers instructions and recommendations.

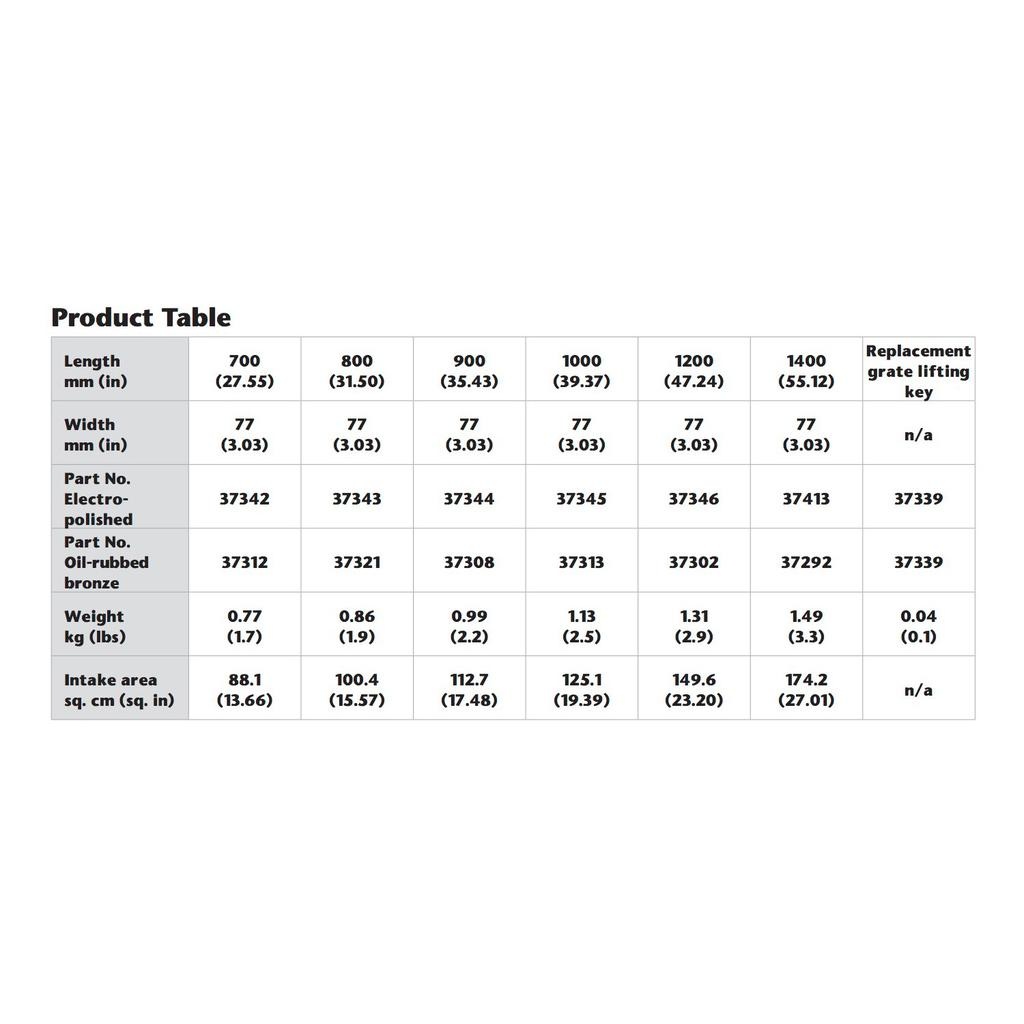

    Length (mm) inches: 700 (27.55)
    Width (mm) inches: 77 (3.03)
    Weight lbs: 0.77 (1.7)
    Intake area sq. in: 88.1 (13.66)
