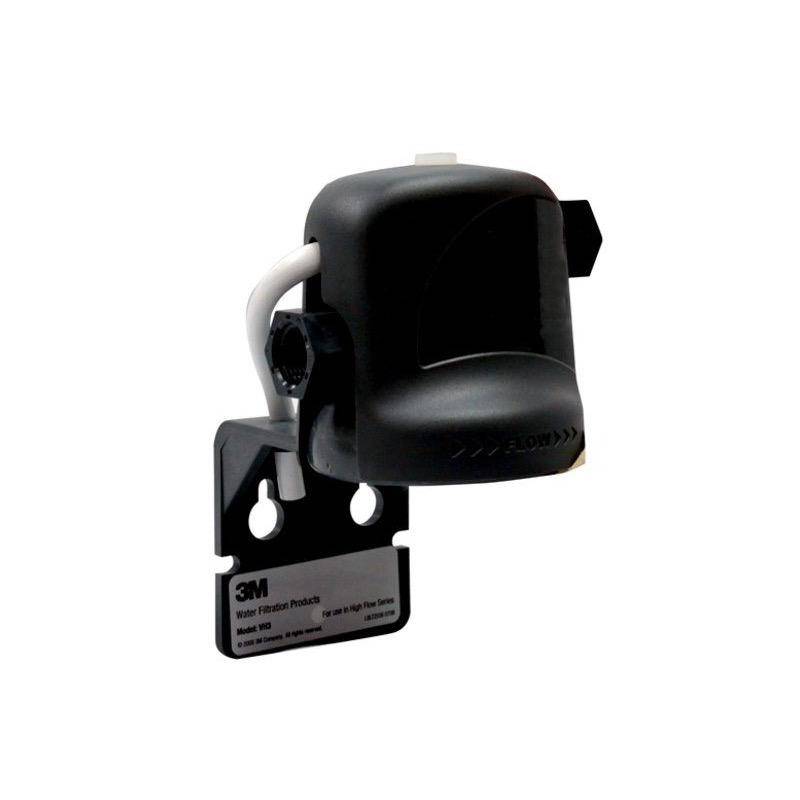

3M VH3-NPT 3/8 FNPT Valve In Head Bracket Assembly
This product is no longer available.
3M VH3-NPT 3/8 FNPT Valve In Head Bracket Assembly
Product Details
Valve-in-head design including shroud and plug
3/8" FNPT inlet and outlet water connections
Designed for use with 3M High Flow Series water filtration cartridges
UPC 00016145802171
Product Number 6213303
3M ID 70020021120
The 3M Valve-In-Head/Bracket Assembly, 3/8" FNPT w/Shroud and Plug, Model VH3-NPT is designed for use with 3M High Flow Series water filtration cartridges. This product features a valve-in-head design and 3/8" FNPT inlet and outlet water connections.
Our 3M Valve-In-Head/Bracket Assembly, 3/8" FNPT w/Shroud and Plug, Model VH3-NPT features a valve-in-head design including a shroud and plug and 3/8" FNPT inlet and outlet water connections.
Creative Filtration Technology
3M Water Filtration Products systems and cartridges offer a wide range of solutions designed to address many types of water quality concerns. Third-party certifications, such as NSF and WQA, are an advantage provided on many 3M Water Filtration Products. 3M Purification is a known leader in filtration technology recognized for innovation, trust, and quality around the world.
Recipe Quality Water
Having cleaner and clearer water for your business is both a pleasure and a reassurance that youre giving your customers recipe quality water. With a water filtration system from 3M Purification, you can provide filtered water that may help protect your equipment and your profits. From commercial point-of-entry to dedicated point-of-use water filtration systems, look to 3M Purification to help you find the right solution.
Applications
|
Coffee and Hot Tea Water Filtration, Coffee and Vending, Cold Beverage, Espresso, Espresso Maker Water Filtration, Ice Machine Water Filtration, Iced Tea, Iced Tea Maker Water Filtration, Steamer, Combi Oven, and Proofer Oven Water Filtration, Vending, Water Filtration for Cold Beverage Dispensers
|
Filter Type
|
SQC Filtration System
|
Industries
|
Commercial
|
Inlet Outlet Size
|
3/8" NPT
|
Maximum Operating Temperature (Celsius)
|
37.8 Degree Celsius
|
Maximum Operating Temperature (Fahrenheit)
|
100F
|
Pressure Range
|
25 - 125 psi
|
Pressure Range (metric)
|
172 - 862 kPa
|
